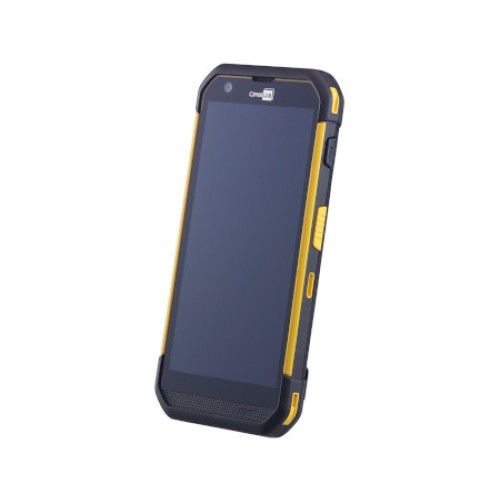

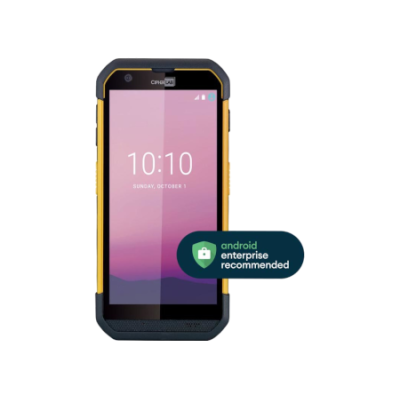

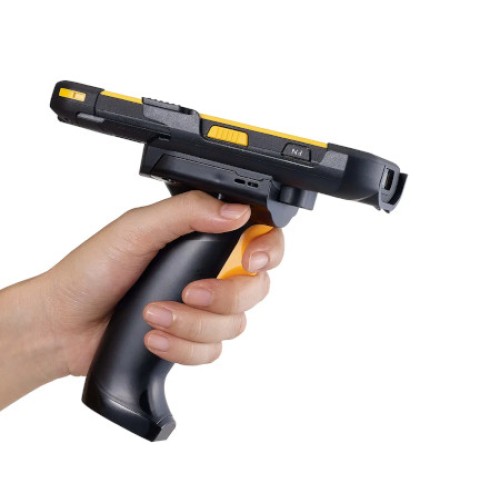

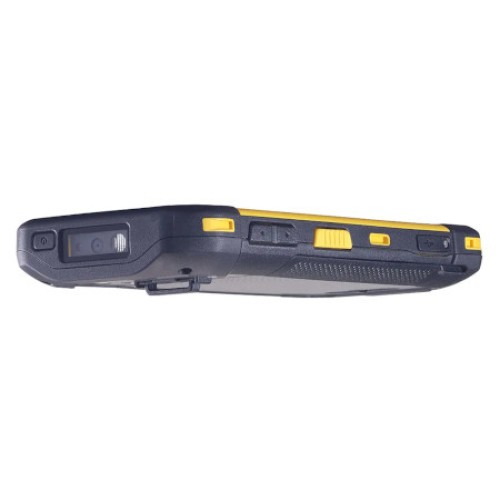

CipherLab RS36
Touch Mobile Computer
The CipherLab RS36 touch mobile computer is the upgrade to the hugely successful RS35. Built on Android 12 with a commitment to Android 14, the RS36 offers a familiar and user-friendly interface that shortens the learning and onboarding process. Its advanced scanning and reading capabilities, including 1D and 2D barcode scanning, HF RFID functionality and contactless NFC applications, make it ideal for retail, transportation, and logistics operations.
The RS36 features a powerful processor, high-resolution camera, Wi-Fi 6 transmission, Bluetooth 5.1 connectivity, OCR solution, sunlight-readable screen, and rugged design with IP65 and IP68 ratings. The RS36 is the perfect handheld terminal for mobile and frontline employees.
| Technical Specifications | |
| Audio | Speaker (80 dB at 40 cm), microphones with echo and noise cancellation |
| Barcode Scanning | 1D/2D imager (Standard range: SE4100/SE4770; Advanced range SE5500) |
| Bluetooth | Bluetooth® Class II, V5.1 dual mode, V2.1 with Enhanced Data Rate (EDR) |
| Camera | Rear :16 megapixels PDAF with LED flash / Front:5 megapixels2 |
| Operating Power | Hot-swappable and rechargeable 3.85V, Li-ion 4000mAh , Extended battery: 6000mAh |
| RFID Read / Write | HF RFID 13 56 MHz frequency which supports 1SO14443A, ISO14443B, ISO15693, and Felica<br> Support NFC (Peer-to-Peer, Card Reader, Card Emulation) |
| Sensors | Interactive Sensor Technology: Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope |
| SIM | 2 nano SIM/ 1 nano SIM and 1 eSIM (optional) |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w, IEEE 802.11ax (WI-FI 6 model only)<br> 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise), MU-MIMO 2x2 (Wi-Fi 6 model only) |
| WWAN | EDGE/GPRS/GSM: 850/900/1800/1900<br> UMTS/HSPA+: B1/B2/B4/ B5/B6/B8<br> FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B17/B19/B20/B25/B26/B28/B66<br> TDD-LTE: B38/39/40/41<br> Support VoLTE and Worldwide Band<br> |
| Memory | 64GB UFS Flash / 4GB LPDDR4X RAM<br> Expansion: Micro SD card slot with SDHC (up to 32GB) and SDXC (up to 2TB) support |
| Display | 5.5'' HD+ 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility (630 nit), optically bonded Touch Panel<br> Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger |
| Interface | 6-pin I/O & USB 3.1 Gen 1 Type-C with OTG<br> |
| Keypad | 1 programmable key, volume up and down keys, left and right trigger keys, power key |
| CPU | Qualcomm Octa-core 2GHz |
| Operating System | Android 12 or 14 (GMS), Upgradeable to Android 14 / 16 |
| YTVideo | |
| YTid | ZnrTDo0iRuo |
| Links | |
| Product Brochure | https://www.cipherlab.com/files/CipherLab_RS36_Brochure_EN.pdf |
