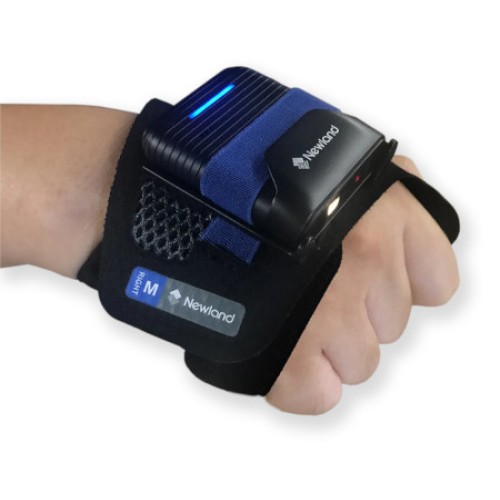

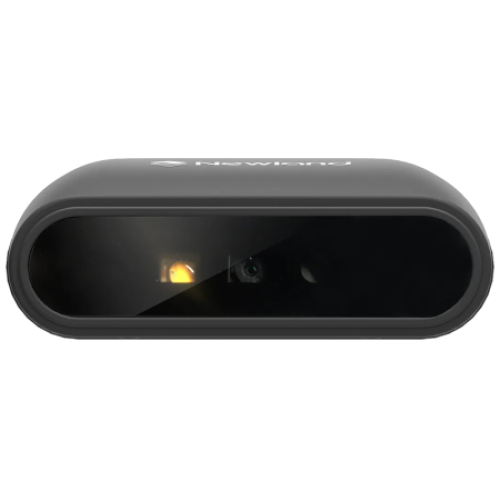

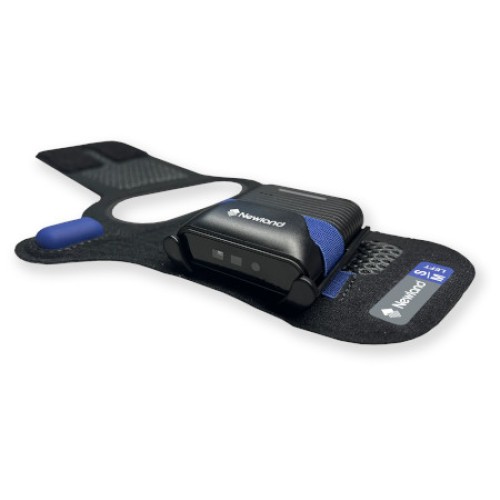

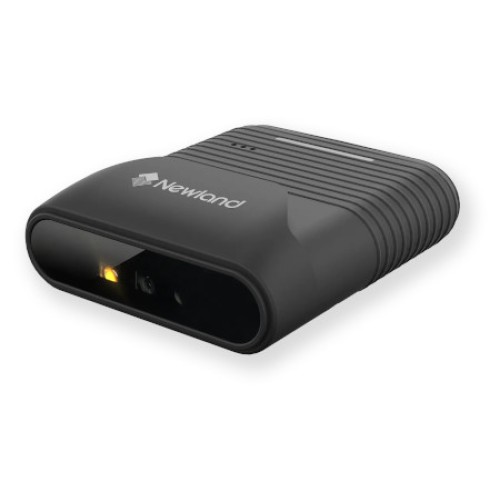

Newland BS50
Wearable Scanner
Compact and Light-weight Design
The BS50 is extremely small and lightweight and easy to relieve the fatigue when holding it by hand for a long time.
High Protection Industrial Structure Design
The BS50, built into an IP65-sealed and drop resistant (1.5m) housing with no moving parts fortifies itself inside and out, is suitable for the tough outdoor environments.
Outstanding Performance
Equipped with Newland latest technology, the scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
Reliable and Stable Wireless Communication
Adopting the Bluetooth 5.0 which is strong anti-interference and stable to transmit the data.
| Technical Specifications | |
| Battery | 670 mAh lithium-ion battery |
| Scanning Angle | BS50-SR: Tilt: 360 deg; Pitch: +/-65deg; Skew; +/-75deg <br> BS50-MR: Tilt: 360 deg; Pitch: +/-60deg ; Skew; +/-70deg |
| Sensors | Image sensor: 1280x800 (megapixel) CMOS |
| Light Source | White LED |
| Depth of Field | BS50-SR:<br> EAN-13 (13mil): 65mm-540mm<br> Code 39 (5mil): 120mm-330mm<br> PDF 417 (6.7mil): 125mm-240mm<br> Data Matrix (10mil): 125mm-240mm<br> QR Code (15mil): 40mm-360mm<br> <br> BS50-MR:<br> EAN-13 (13mil): 60mm-850mm<br> Code 39 (20mil): 80mm-1300mm<br> Code 39 (100mil): 250mm-3500mm<br> Code 128 (5mil): 190mm - 300mm<br> Data Matrix (10mil): 160mm - 300mm |
| YTVideo | |
| YTid | CD6HAinp5_g |
| Links | |
| Datasheet | https://d1bx683snmhtki.cloudfront.net/BarcodeScanner/BS50/NLS-BS50_Datasheet_global_en.pdf |
| Quick Guide | https://d1bx683snmhtki.cloudfront.net/BarcodeScanner/BS50/NLS-BS50_User_Guide.pdf |
