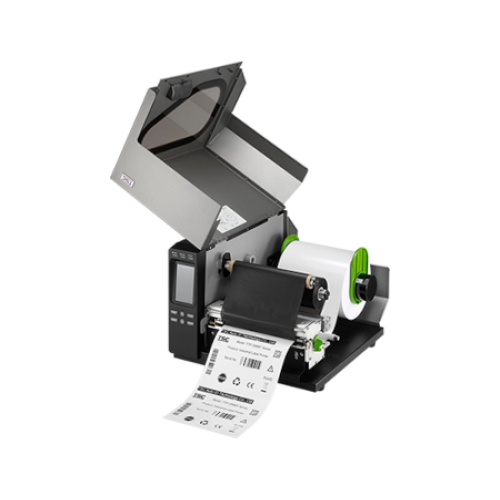

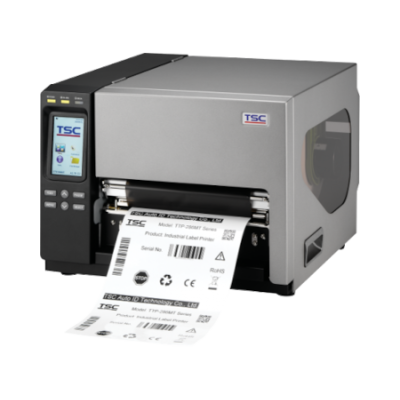

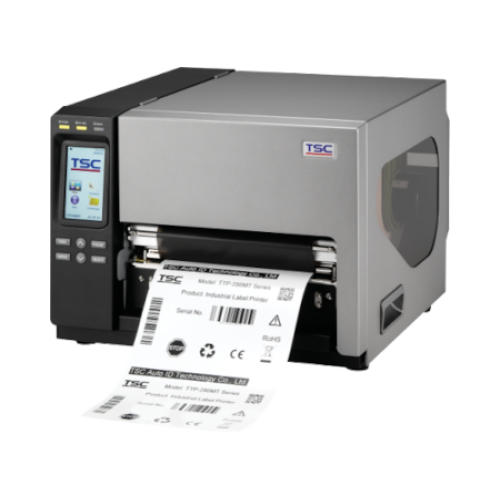

TTP Series 8-Inch Performance Industrial Printers

This 8-inch wide industrial printer series features two models to meet your wide format labeling needs: TTP-286MT, 203 dpi resolution at print speeds up to 6-inches per second. TTP-384MT, 300 dpi resolution at print speeds up to 4 inches per second. With its wide printing capabilities, the TTP-286MT is designed to print wide lateral bar codes without the need for image rotation.


The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. The TTP-286MT Series features two models to meet your wide format labeling needs.

Salient Features

  • TTP-384MT - 300 dpi resolution, 8.64-inch print width, 4 ips (102 mm/second) print speed.
  • Enhanced High-Speed Performance, Color Touch Display
  • High-Speed Performance, More memory
  • A Colorful Choice - with a high-contrast 4.3" color touch LCD panel with 6 button control user friendly design for simple printer set up and job status.
  • Powerful TSPL-EZD Printer Programming Language

TTP-286MT Series features the TSPL-EZD printer-control language, a fully compatible set of standard industry emulations, including Line Mode, Eltron and Zebra languages and will work in many IT environments including Oracle, SAP, Unix, AS/400, Windows, Stand Alone, and many more.

Technical Specifications
Printing Method Direct thermal/Thermal transfer
Printing Speed 4 ips (102 mm/s)
Printing Length Max. 200" (5,080 mm)
Printing Width Max. 8.64" (219.5 mm)
Connectivity Bluetooth / Ethernet / GPIO / Parallel port / Serial RS-232 / USB / USB Host
Memory 256 MB SDRAM <br> FLASH: 512 MB <br> Expandable FLASH: SD memory card reader; up to 32 GB
Display Color LCD touchscreen with buttons
Resolution 300 dpi (12 dots/mm)
YTVideo
YTid apFEuHB96Dk
Links
Datasheet https://fs.tscprinters.com/en/dl/4/2153
Operator Manual https://fs.tscprinters.com/en/dl/4/2689
