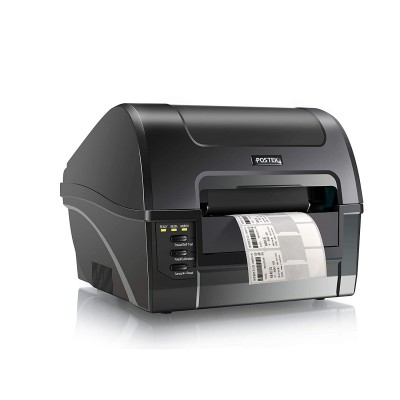

C168/200s

Features

  • Compact, affordable, endurance performance.
  • Rigid structure, plus the highly reliable motor& transmission system result in minimal down time and low service cost.
  • 360 ribbon capacity makes printing a high volume of labels easy without frequent reloading.
  • Reflective (adjustable) and Transmissive media sensors.

  • Printing Method Thermal Transfer Printing Resolution 203 dpi Max Printing Speed 4 ips (101.6 mm/s) Max Printing Width 4.25″ (108 mm) Max Printing Length 157″ (4000 mm) Memory 8 MB FLASH ROM, 16 MB SDRAM HEAT™ Level Ⅱ Media

    Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or  thermal paper.
    Width: 4.33″ (110 mm) max., 0.98″ (25 mm) min.
    Supply roll:OD 5″ (127 mm) max., or OD 9″ (228.6 mm) max. (using External Media Stand)
    ID 1″ (25.4 mm) min.
    Thickness: 0.003″ - 0.006″(0.08 - 0.15 mm), including liner.

    Ribbon

    Wax, Wax/Resin, Resin
    Ribbon roll: OD 3″ (76.2 mm) max., ID 1″ (25.4 mm) core
    Max width: 110 mm; Max length: 300 m. Ink side: Out

    Media Sensor Reflective (Adjustable)/ Transmissive Fonts Five built-in ASCII fonts, Downloadable TrueType fonts Barcode Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2
    and 5 add-on, EAN-13/8/128, UCC-128;
    2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code. Interfaces RS-232 Serial, USB DEVICE 2.0 Power Rating 24 VDC Power adapter Weight 2.8 kgs Dimensions W 236 mm x D 291 mm x H 199 mm Operating Environment Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing Storage Environment Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing Accessories

    Standard Item: External Media Stand;
    Optional Items: Rotary Cutter, 10/100M-bit Ethernet, Centronics Parallel, Media Guide Adaptor and External Label Rewinder
